PATCH CORDS & MOLDED CABLE ASSEMBLIES
MINIATURE PLUGS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
MOLDED CABLE ASSEMBLIES With Tini Plug ? Miniature Phone Plugs
RA700
Termination Code: 50
ST740
Termination Code: 46
ST750
Termination Code: 45
SPECIFICATIONS
PLUG
Tip and Sleeve: Nickel-plated copper alloy.
Cable Clamp: Tin-plated steel.
Insulation: Rigid plastic.
Molded Handle: Plastic.
Standard Colors: Gray, white, black, brown.
Other colors available on special order.
CABLE
Shielded—Type W-1000-1 (suitable for ST740 and
ST750 due to cable Outside Diameter).
Shielded—Type W-1032-1 (suitable for all types on this page).
Standard Parallel—Type W-1041-1.
NOTE: See Standard Cable Chart on page 260 for details.
Order by part number from guide on page 259.
RA710
Termination Code: 51
ST700
Termination Code: 41
ST710
Termination Code: 40
DESIGN FEATURES
? “Pear-shaped” one-piece tip rod soldered directly
to cable conductor.
? Cable clamp connects cable shield
(or second conductor) to the plug sleeve.
RA700: Right-angle Tini Plug ? plug with small plastic
handle. Short body extension, recommended for slightly
recessed jacks. Molded to cables up to .109" (2.77 mm)
outside diameter.
RA710: Right-angle Tini-Plug ? plug similar to RA700,
except longer body extension where equipment jack is
deeply recessed. Molded to cables up to .109" (2.77 mm)
outside diameter.
ST700: Straight Tini-Plug ? plug offering the shortest and
smallest handle.
Special Cable: We will build assemblies on cable furnished by
you, up to .160" (4.06 mm) (for ST740 and ST750); .120" (3.05
mm) (for ST700, ST710, RA700, RA710) outside diameter, or
on cable we purchase to your specifications. Jacket must have
temperature rating of 60°C minimum.
ST710: Same as ST700, except with longer handle.
ST740: Straight Tini-Plug ? with larger outside diameter
handle desirable.
ST750: Straight Tini-Plug ? with same diameter handle
as ST740 and longer handle for easier handling.

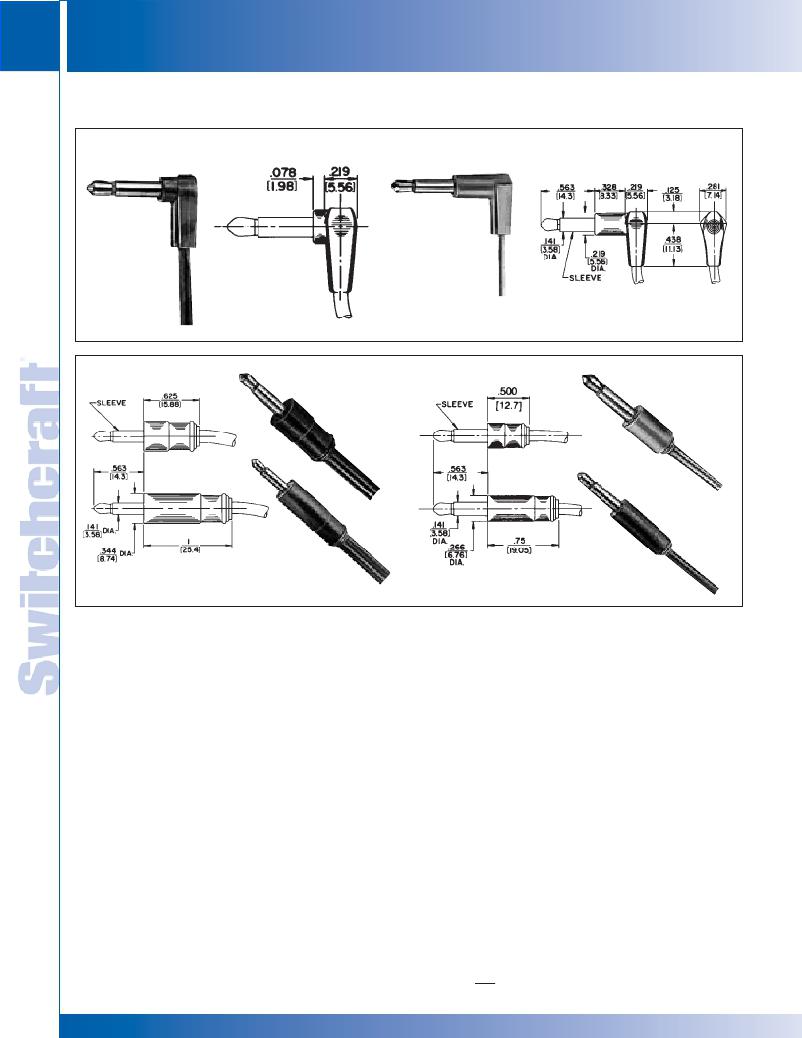

DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
